BMW E36 M3 COOLING DUCT SYSTEM

BMW E36 M3 Multi-Purpose Air Duct Kit – Left & Right

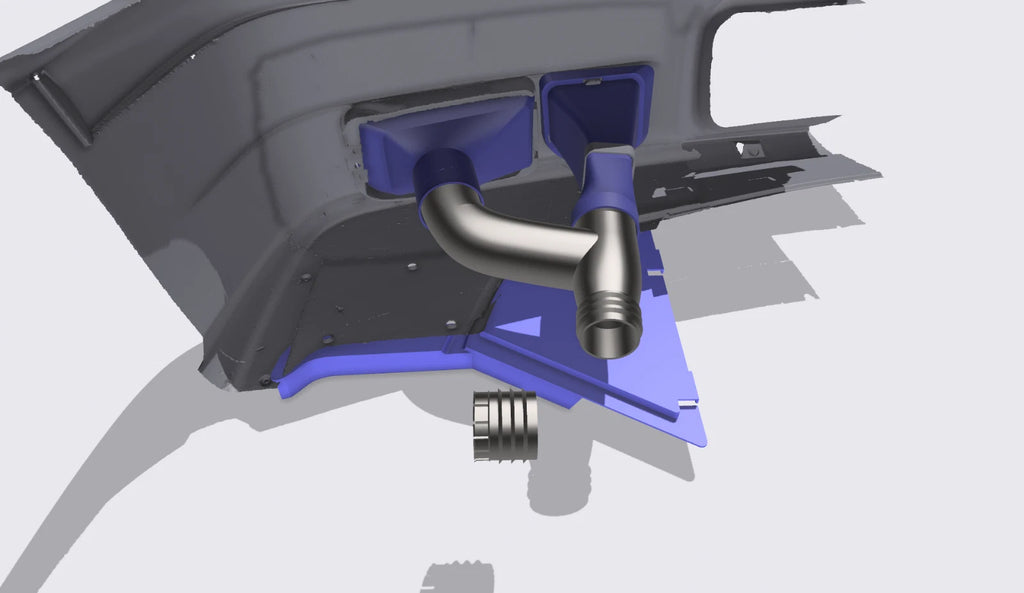

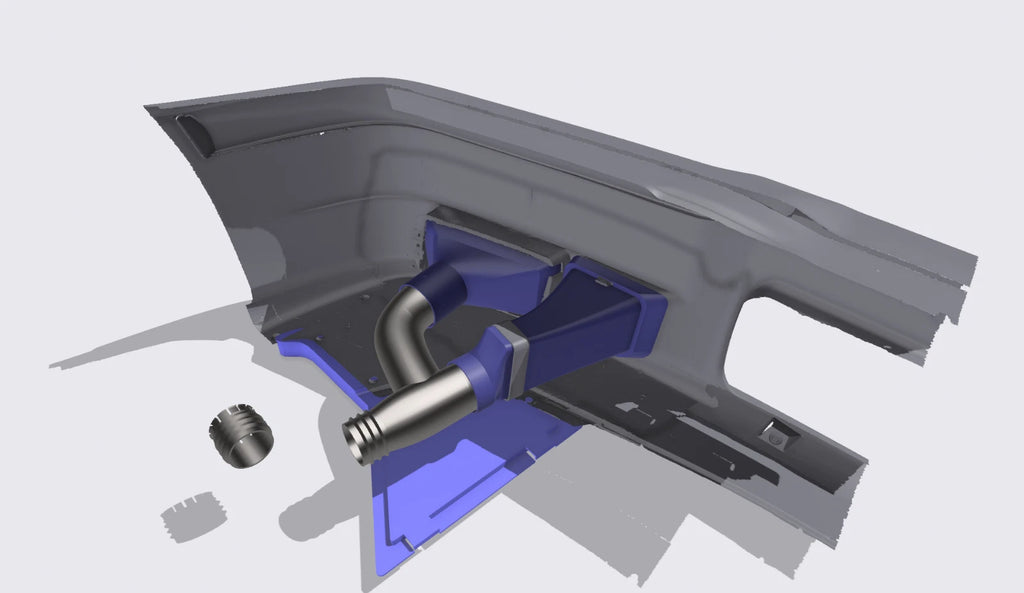

This is a dual-side airflow ducting kit designed for BMW E36 models with the M body kit, allowing you to direct cool air exactly where it’s needed — brakes, alternator, radiator, or any other high-temperature component.

Unlike fixed brake-only ducts, this system offers flexibility, making it ideal for rally, track, or custom cooling setups.

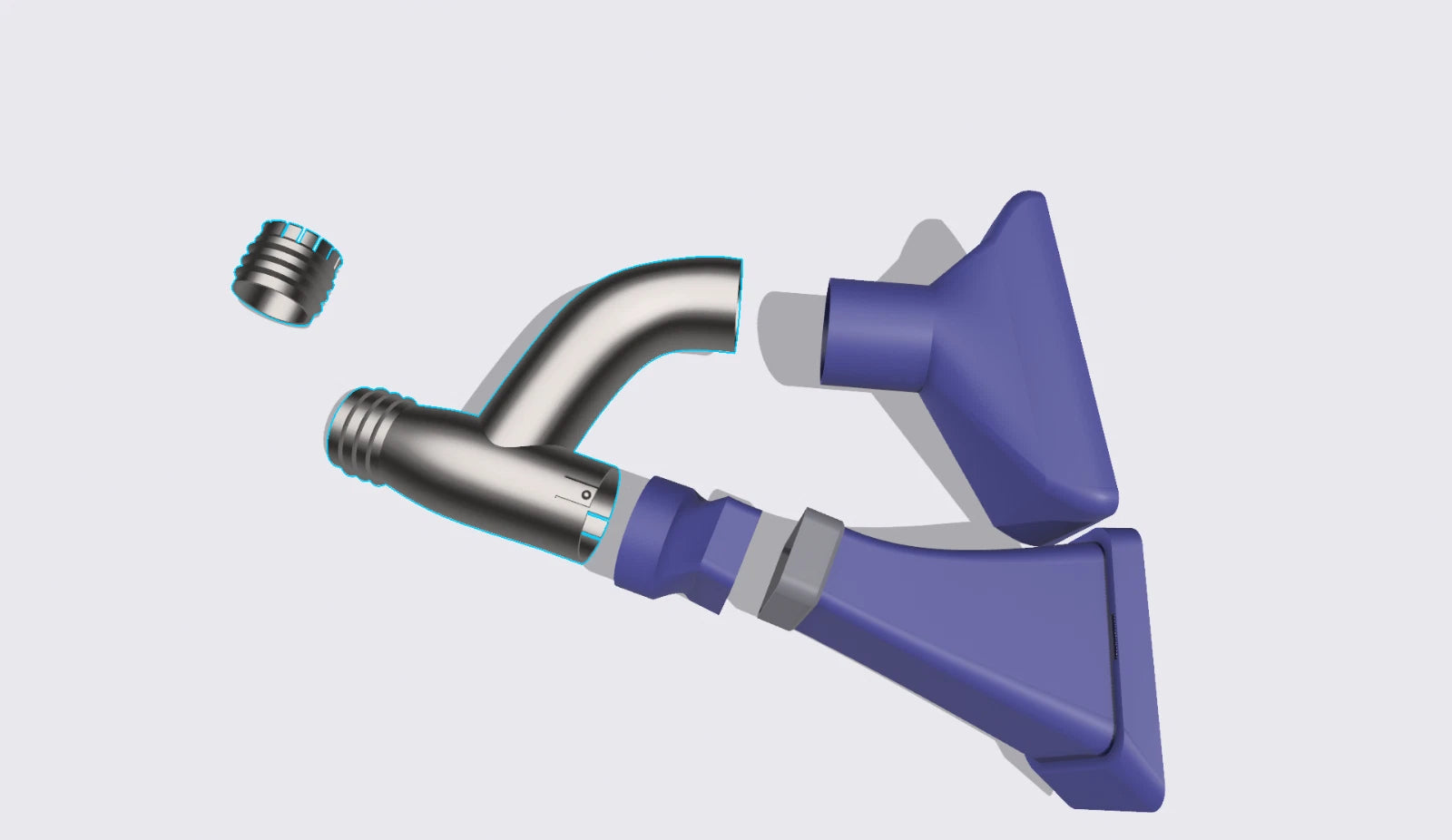

What’s Included

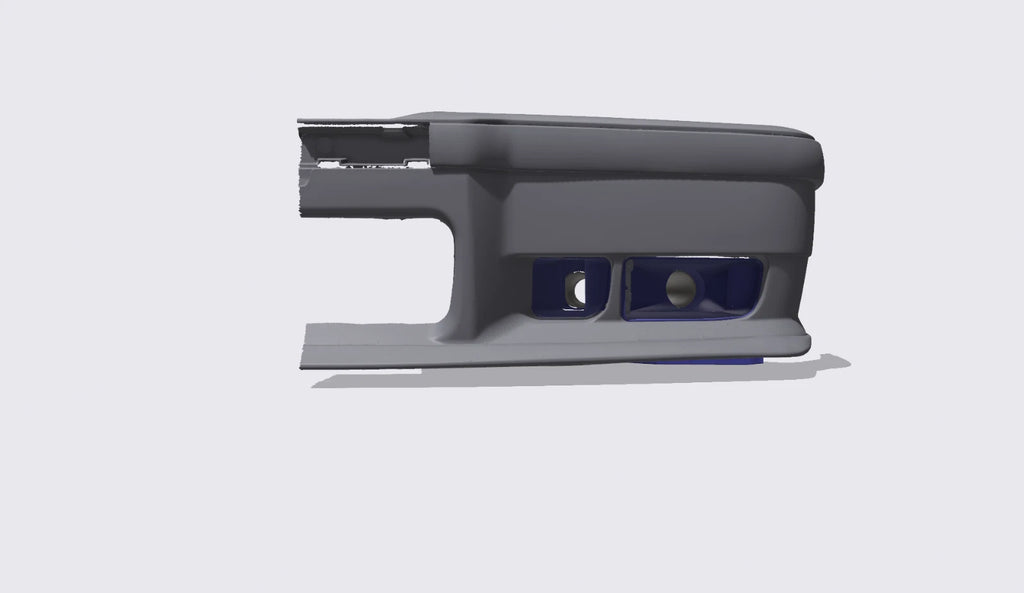

• Left & Right duct housings, Fog lights

• Two adapters (one per side)

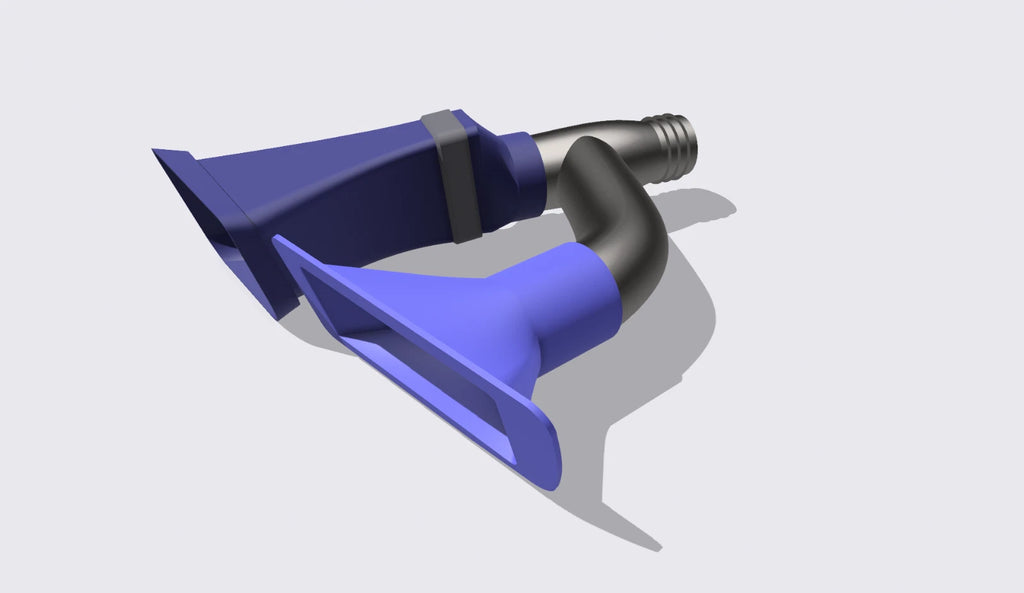

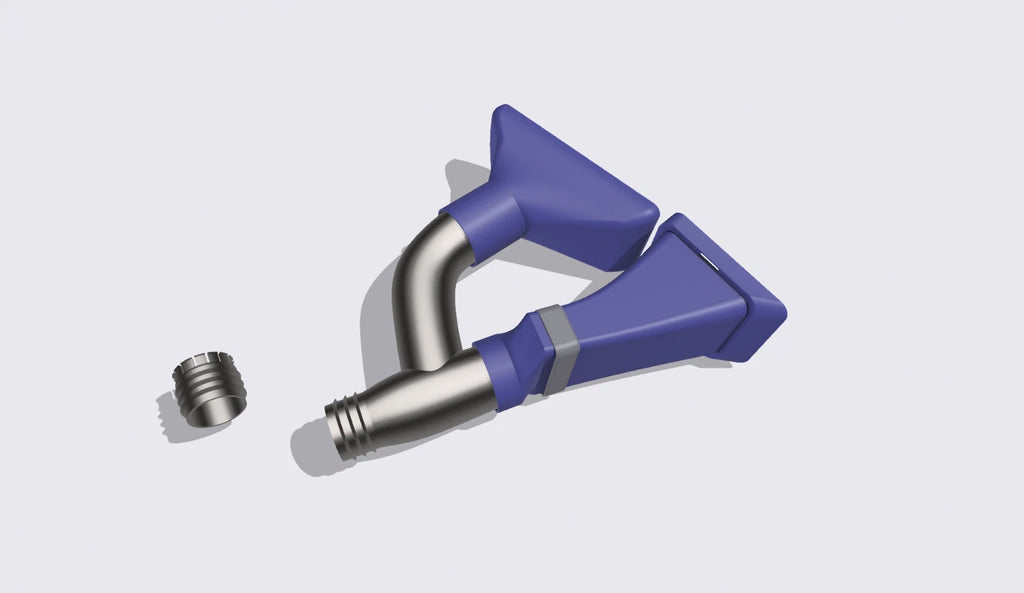

• 3D-printed airflow Y-connector

  • Used to join ducting and improve airflow efficiency

Corrugated hose not included
You will need to supply 45 mm internal diameter corrugated ducting, which connects directly to the adapters and allows you to route airflow where required.

Designed For

• Brake cooling

• Alternator cooling

• Radiator airflow

• Custom motorsport cooling solutions

If you’re after a direct-to-brake setup, that is available as a separate.

Material & Manufacturing

• • 3D printed from aerospace-grade carbon fibre reinforced ASA

  • Excellent heat resistance, strength, and durability

  • Built to withstand harsh environments and sustained high temperatures

  • Manufactured using Vision Miner 22 IDEX industrial printers

  • Printed and packaged in the UK to the highest standards

Installation Notes (Important)

• Use a silicone-based adhesive such as Tiger Seal or panel bond

• Do not use super glue — it is not suitable for mechanical parts


• Final mounting method is the installer’s responsibility

Finish

• Supplied in black

• Can be painted if desired

• Black only due to the carbon fibre material

Shipping

• Shipped via Royal Mail 48-Hour Medium Parcel

• If your item arrives damaged, please contact us
